Google Drive

​

Connect AI Squared to Google Drive

​

Prerequisites

​

Step-by-Step Guide to Connect to Google Drive.

​

Step 1: Create Service Account

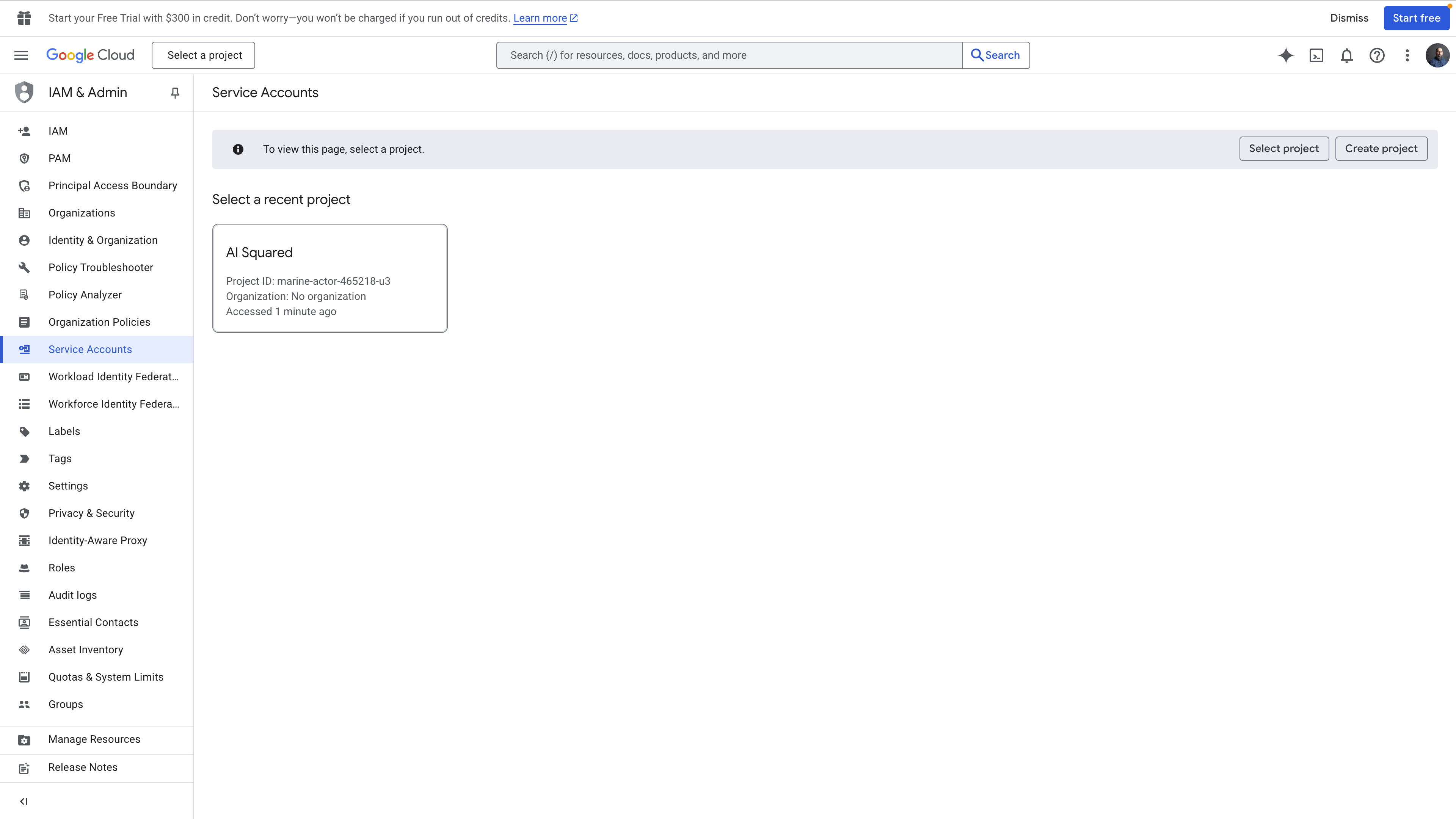

1. Navigate to the Service Accounts page in your Google Cloud console.

2. Choose an existing project or create a new one.

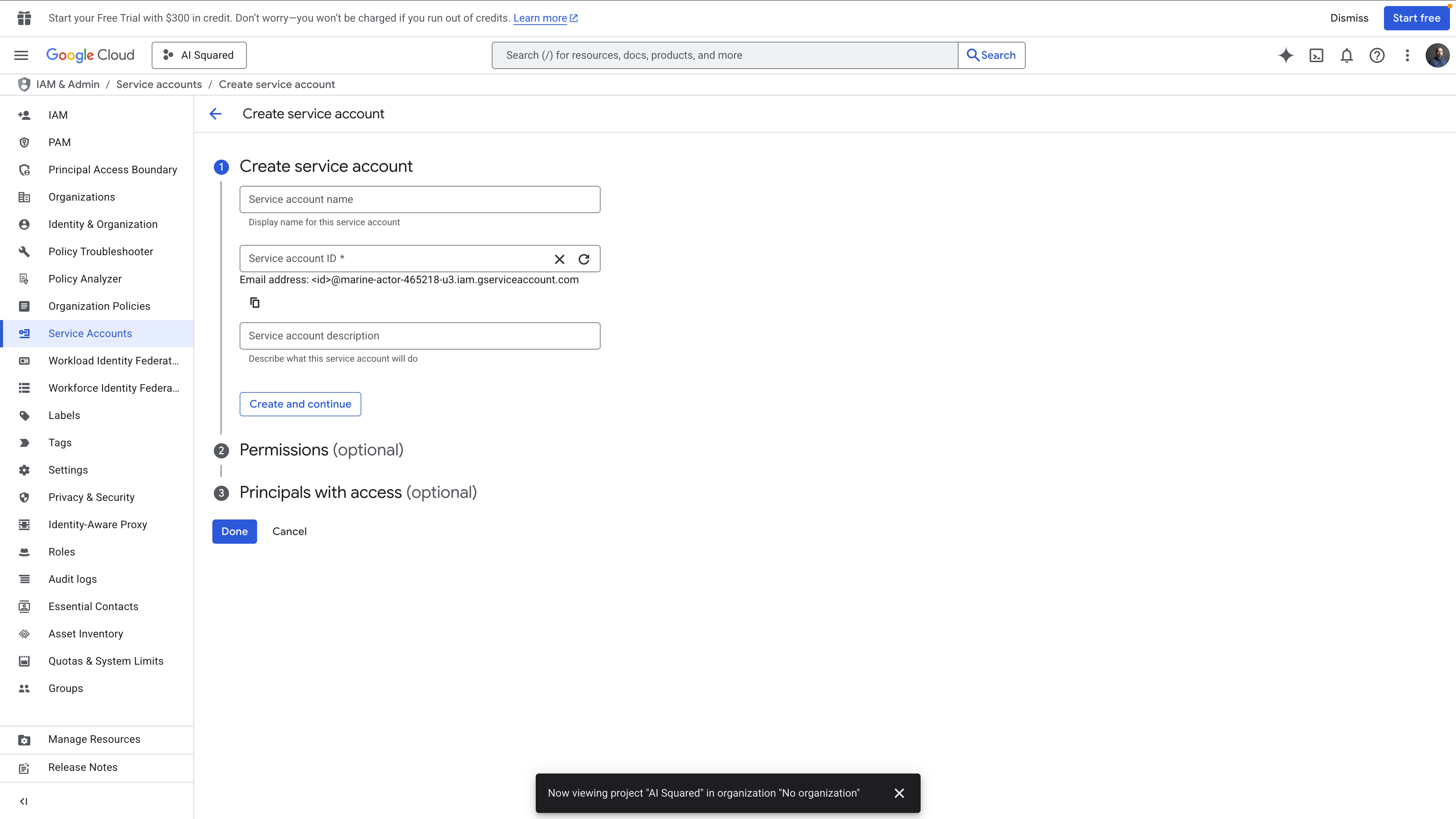

3. Click + Create service account, enter its name and description, then click Create and Continue.
4. Assign appropriate permissions, recommending the Editor role, then click Continue.

​

Step 2: Generate a Key

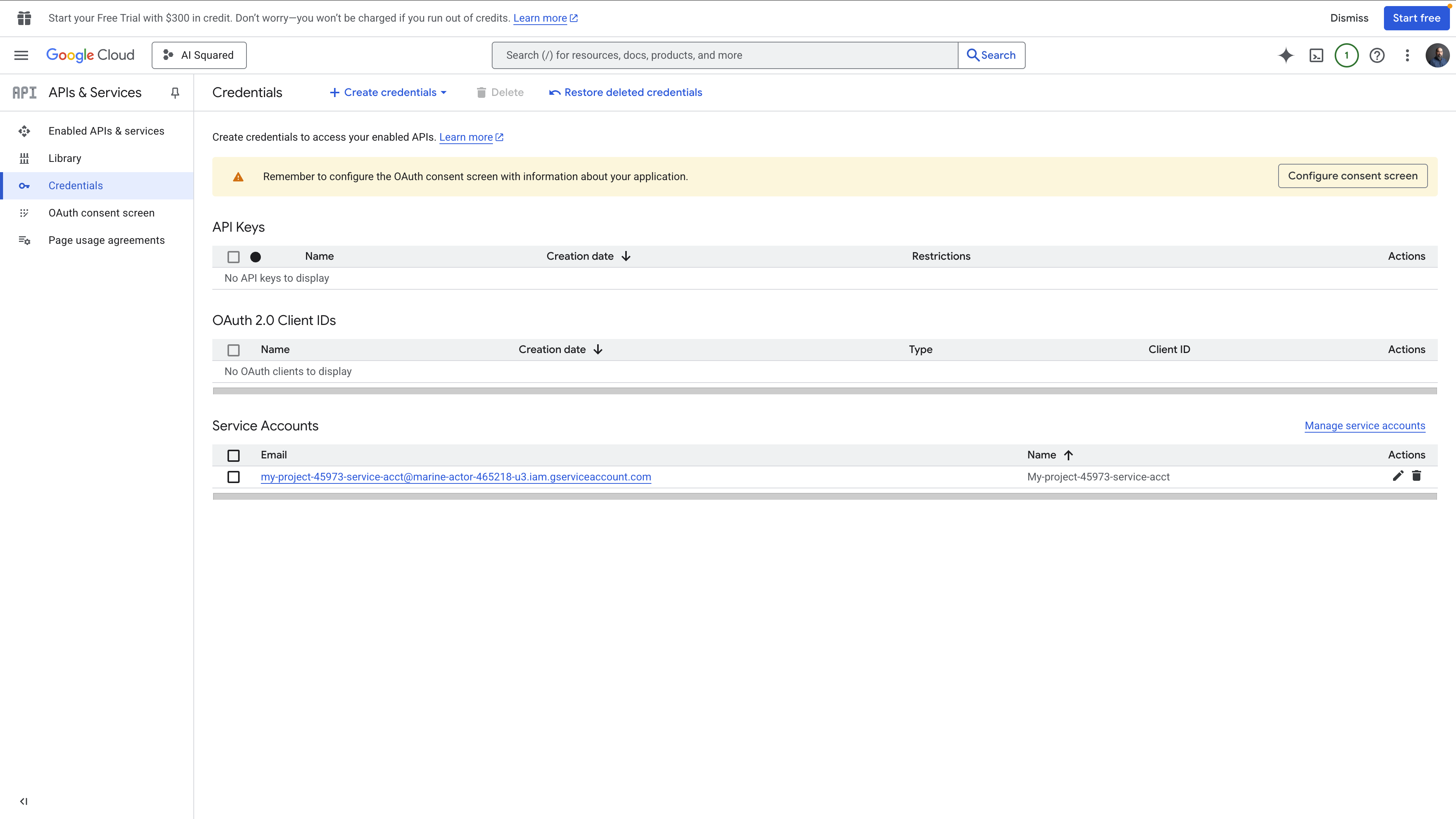

1. Access the API Console > Credentials page, select your service account’s email.

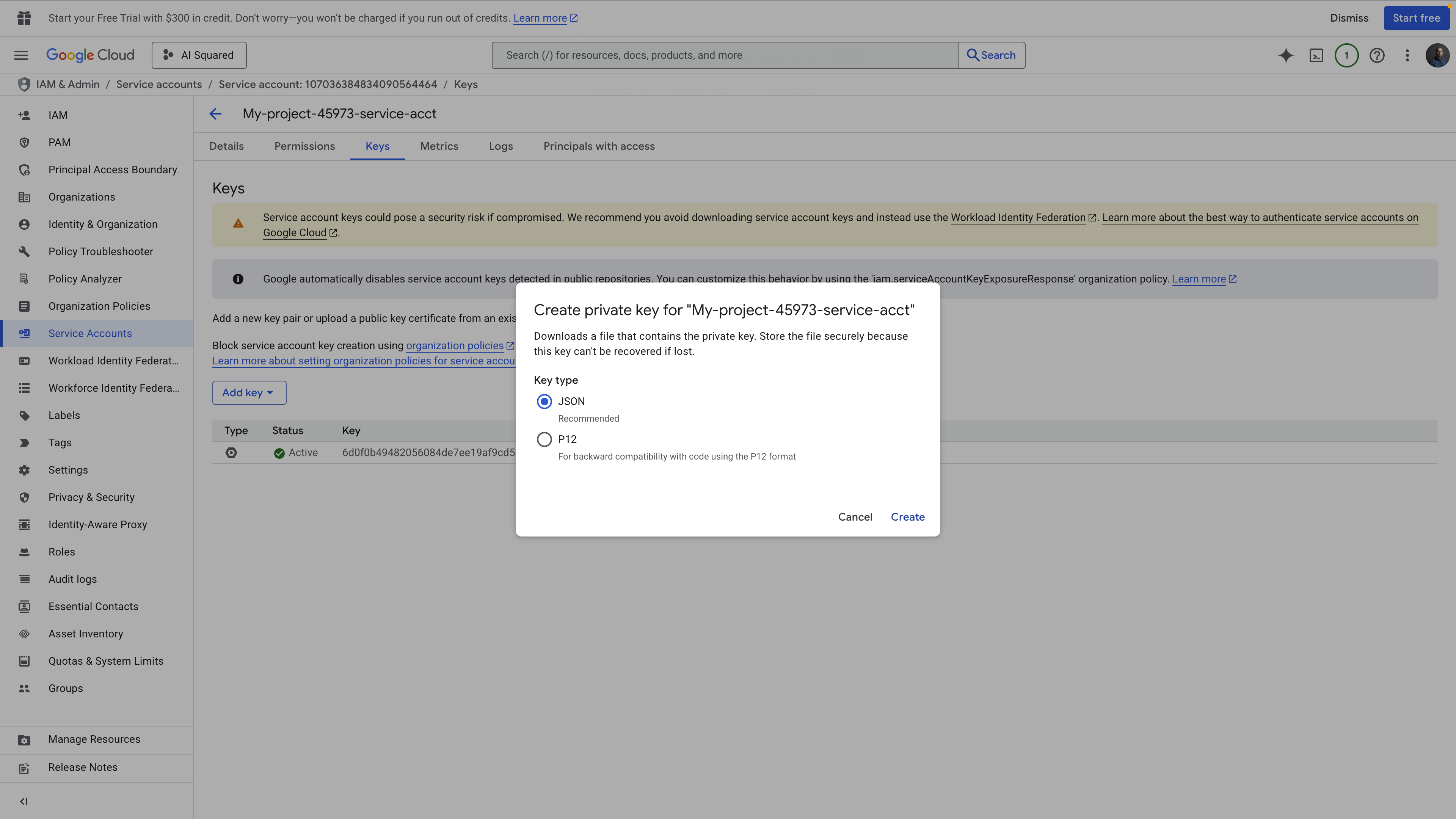

2. In the Keys tab, click + Add key and select Create new key.
3. Choose JSON as the Key type to download your authentication JSON key file. Click Continue.


​

Step 3: Enable the Google Drive API

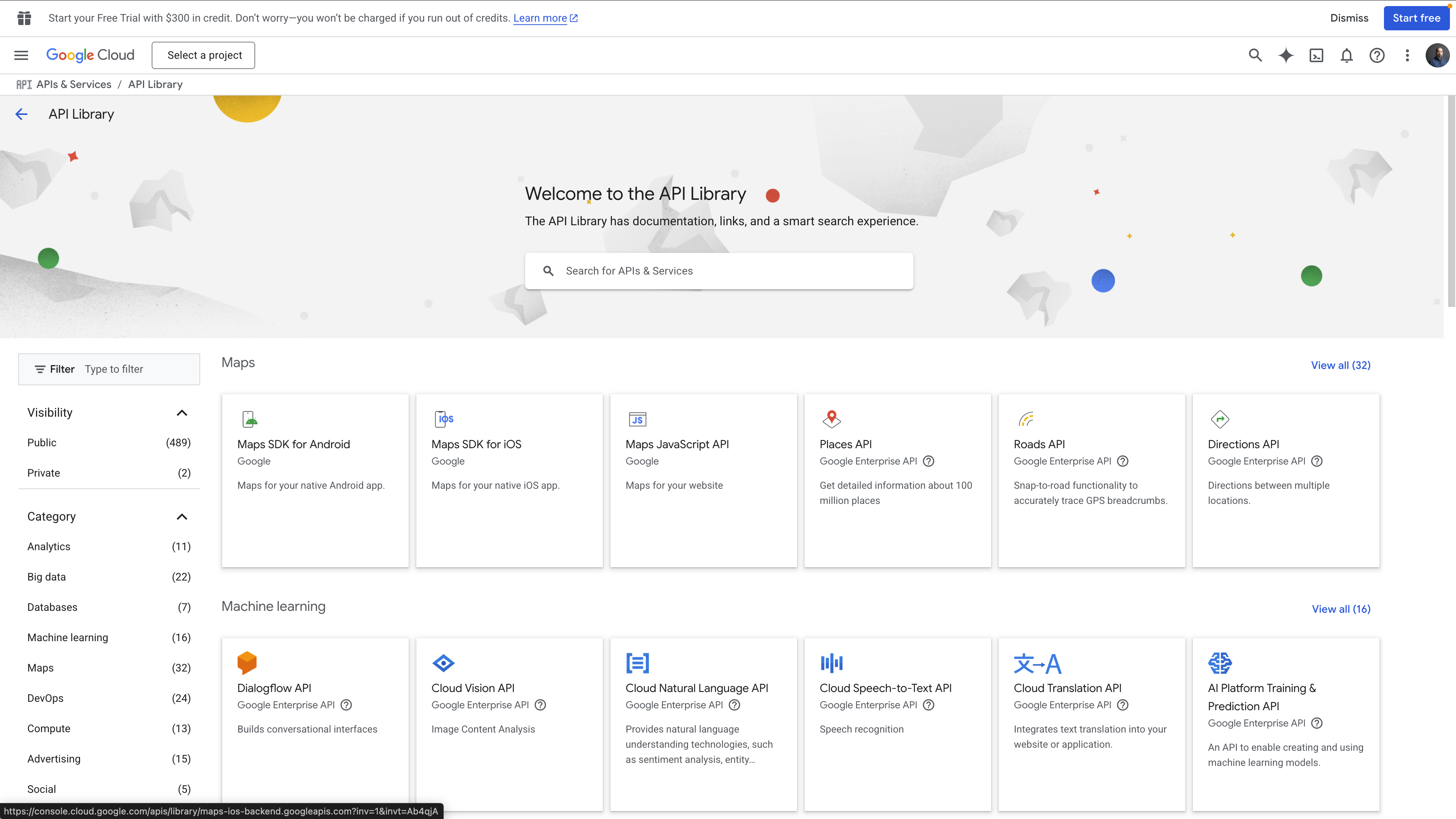

1. Navigate to the API Console > Library page.

2. Verify that the correct project is selected at the top.

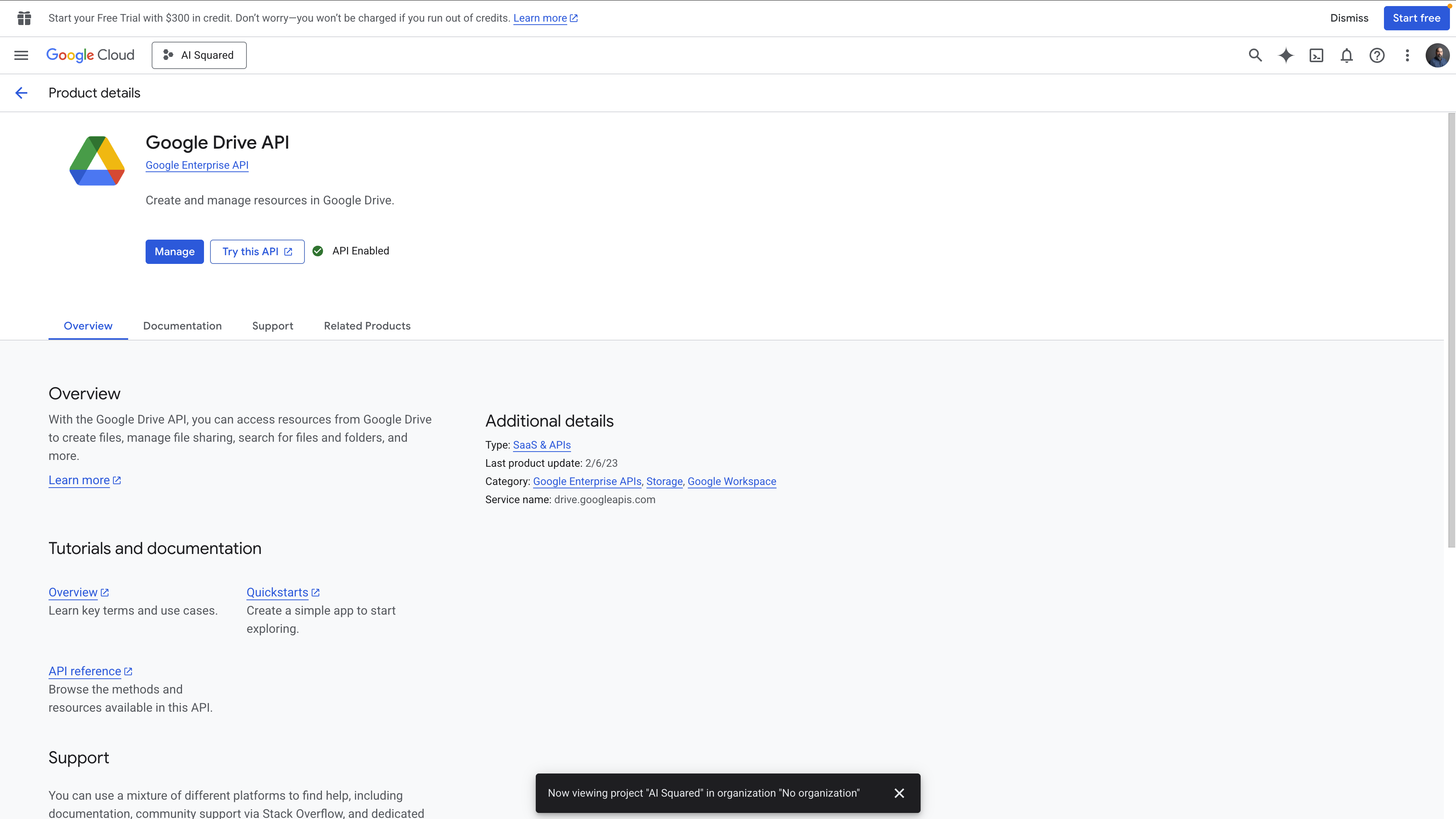

3. Find and select the Google Drive API.
4. Click ENABLE.


​

Step 4: Configure Google Drive connector

• type: Type of account to use for authentication. Select service_account.
• project_id: Obtained from downloaded JSON.
• private_key_id: Obtained from downloaded JSON.
• private_key: Obtained from downloaded JSON.
• client_email: Obtained from downloaded JSON.
• client_id: Obtained from downloaded JSON.
• auth_uri: Obtained from downloaded JSON.
• token_uri: Obtained from downloaded JSON.
• auth_provider_x509_cert_url: Obtained from downloaded JSON.
• client_x509_cert_url: Obtained from downloaded JSON.
• universe_domain: Obtained from downloaded JSON.

• Folder: The folder to read files from. If not specified, reads from root folder.
• Read from Subfolders: When enabled, it reads files from subfolders in the specified folder.
• File type: Type of files to read.
• document_type: The type of document to parse. Supported: invoices/receipts.
• fields: List of fields to extract from the documents.

​

Step 5: Test the Google Drive connection

1. Save the configuration settings.
2. Test the connection to Google Drive to ensure everything is setup correctly.
3. Run a test query or check the connection status to verify successful connectivity.

​

Supported sync modes
